Roller fairleads are used for the reliable guidance and support of hydraulic hoses – especially for longer free-hanging sections. They reduce hose sagging and ensure clean hose guidance.
Fixed and hinged models are available for different installation situations, so that the right variant can be selected for every mounting situation.
Advantages:
- minimise sagging of the hose when laying freely without support
- support controlled hose routing
- models that can be opened allow the hose to be inserted when already attached
- various sizes and designs available for different installation situations
Standard roller fairlead
These models are designed for permanent installation, with the hose running continuously through the roller window. Two models are available for different installation situations:

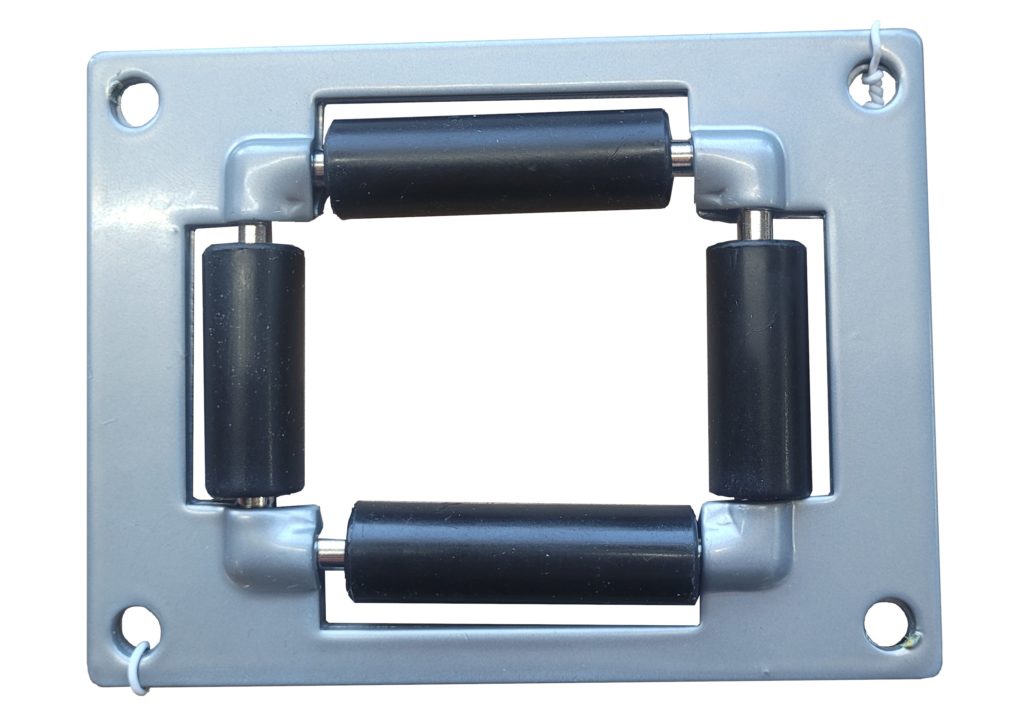

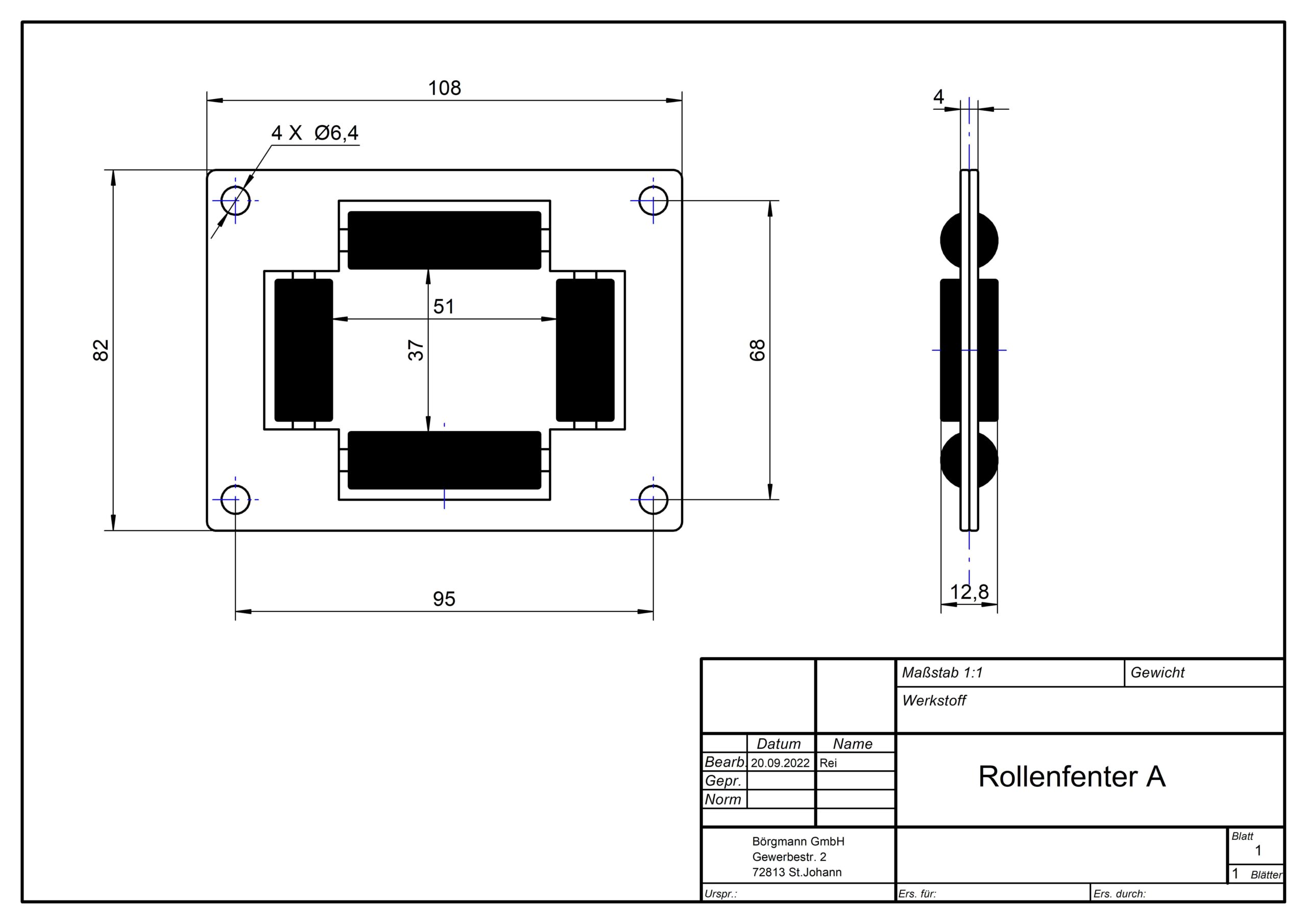

Model A:

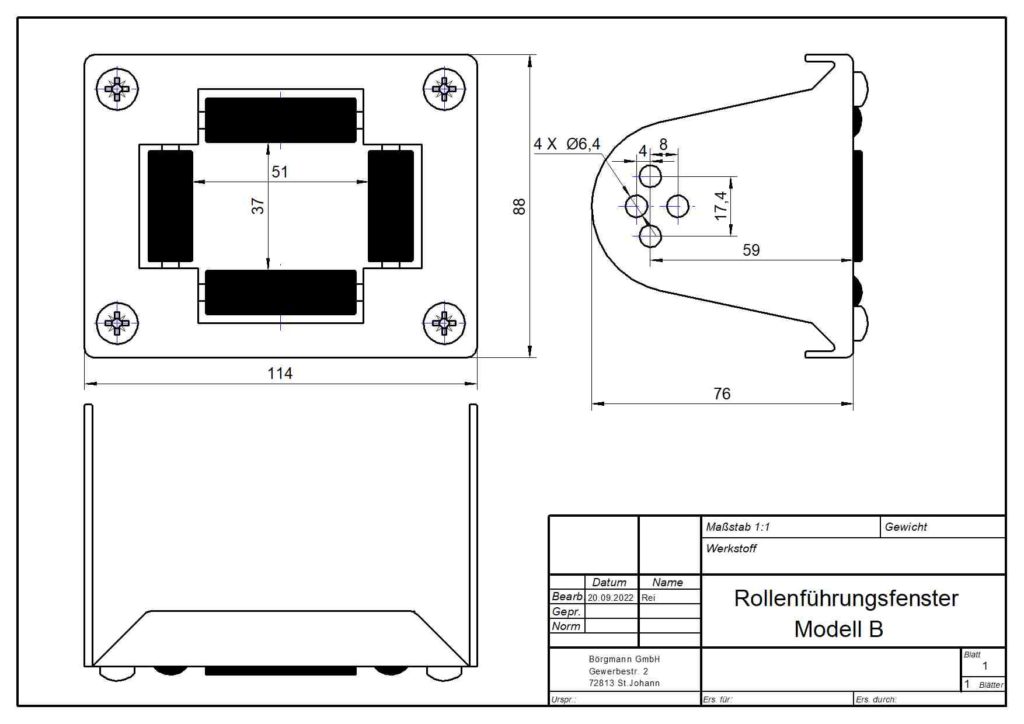

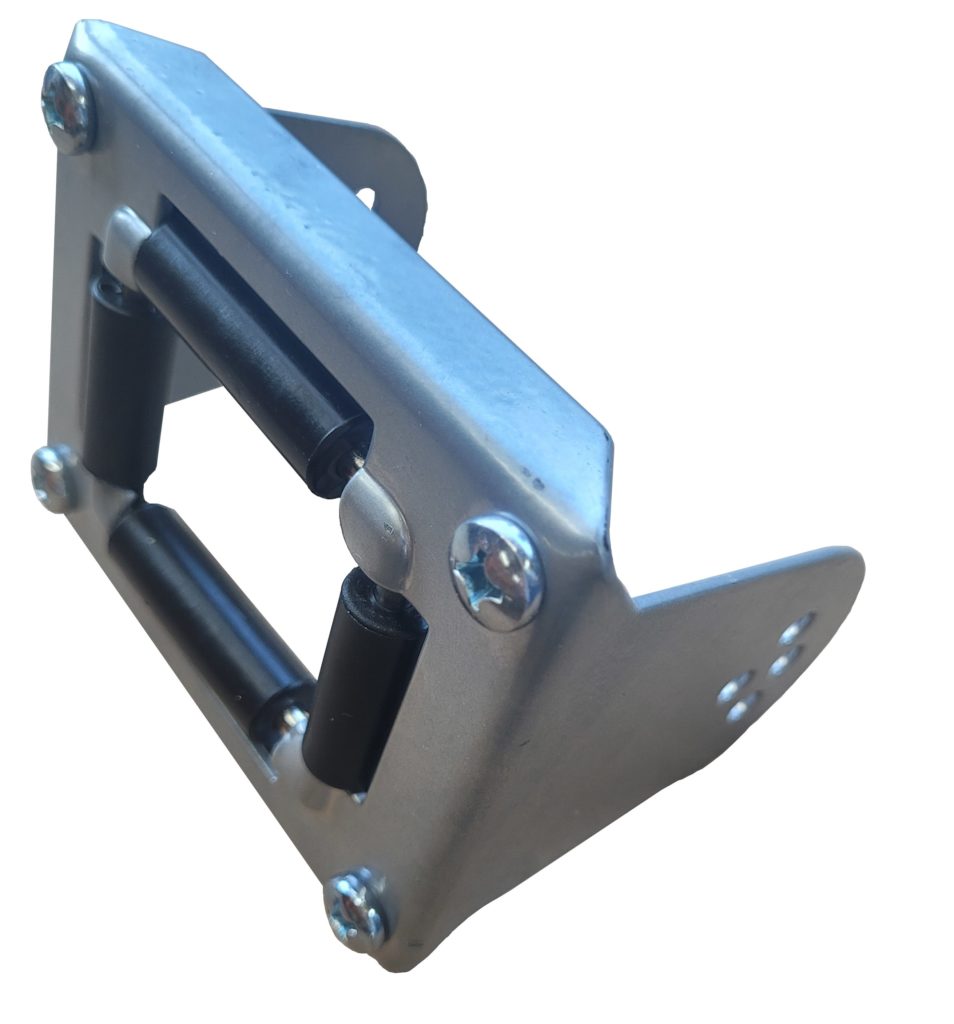

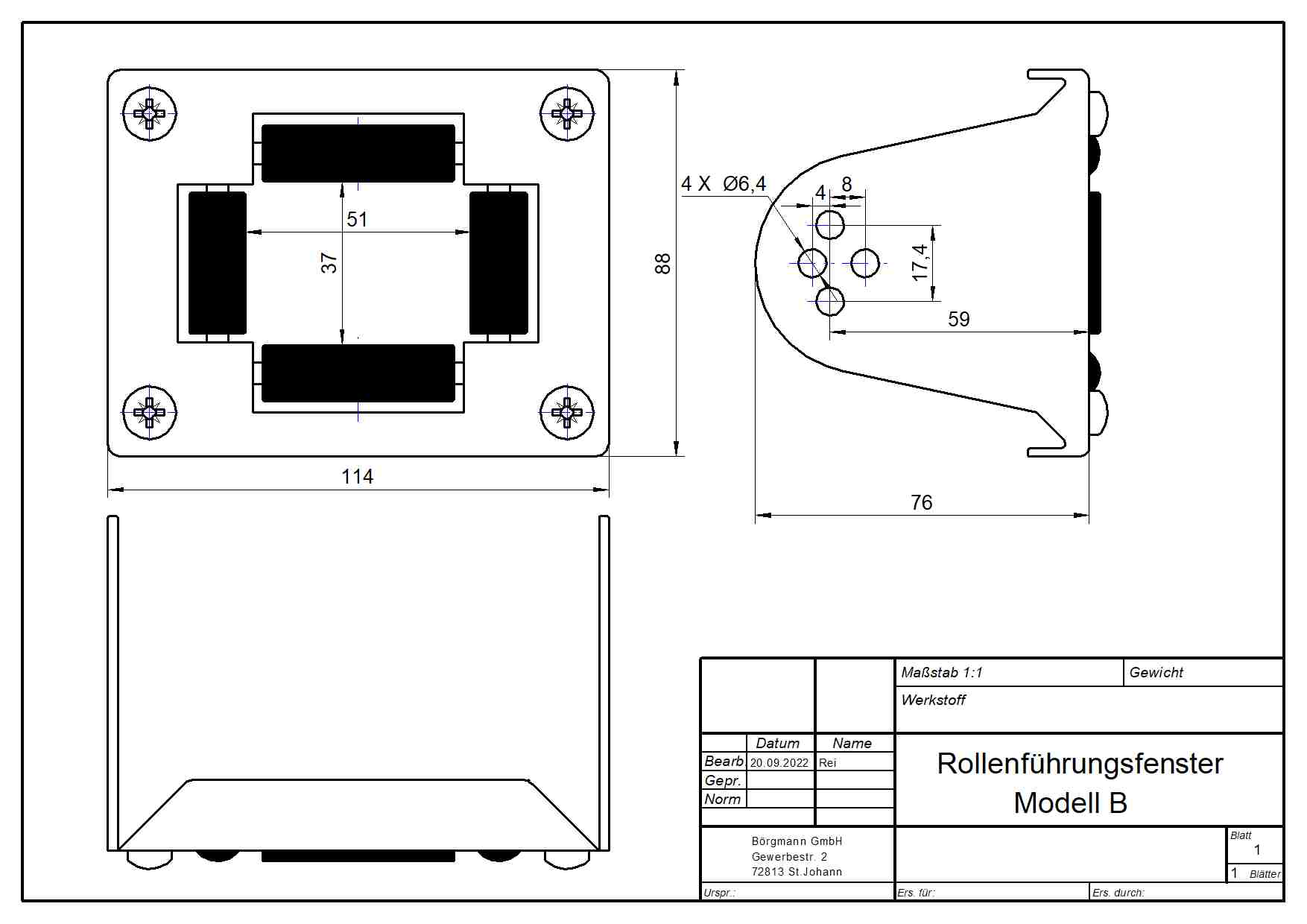

Model B:
Opening roller fairleads
This variant allows the hose to be inserted when already installed.
To open the roller fairlead, one of the two M5x20 screws must be loosened and the other opened. The roller fairlead can then be opened and the hose inserted.
Two models are available for different installation situations. Both models are available in two sizes: the small roller fairleads have an opening of 64 mm x 43 mm through which the hydraulic hose is routed. In the large versions, on the other hand, this opening measures 80 mm x 60 mm.

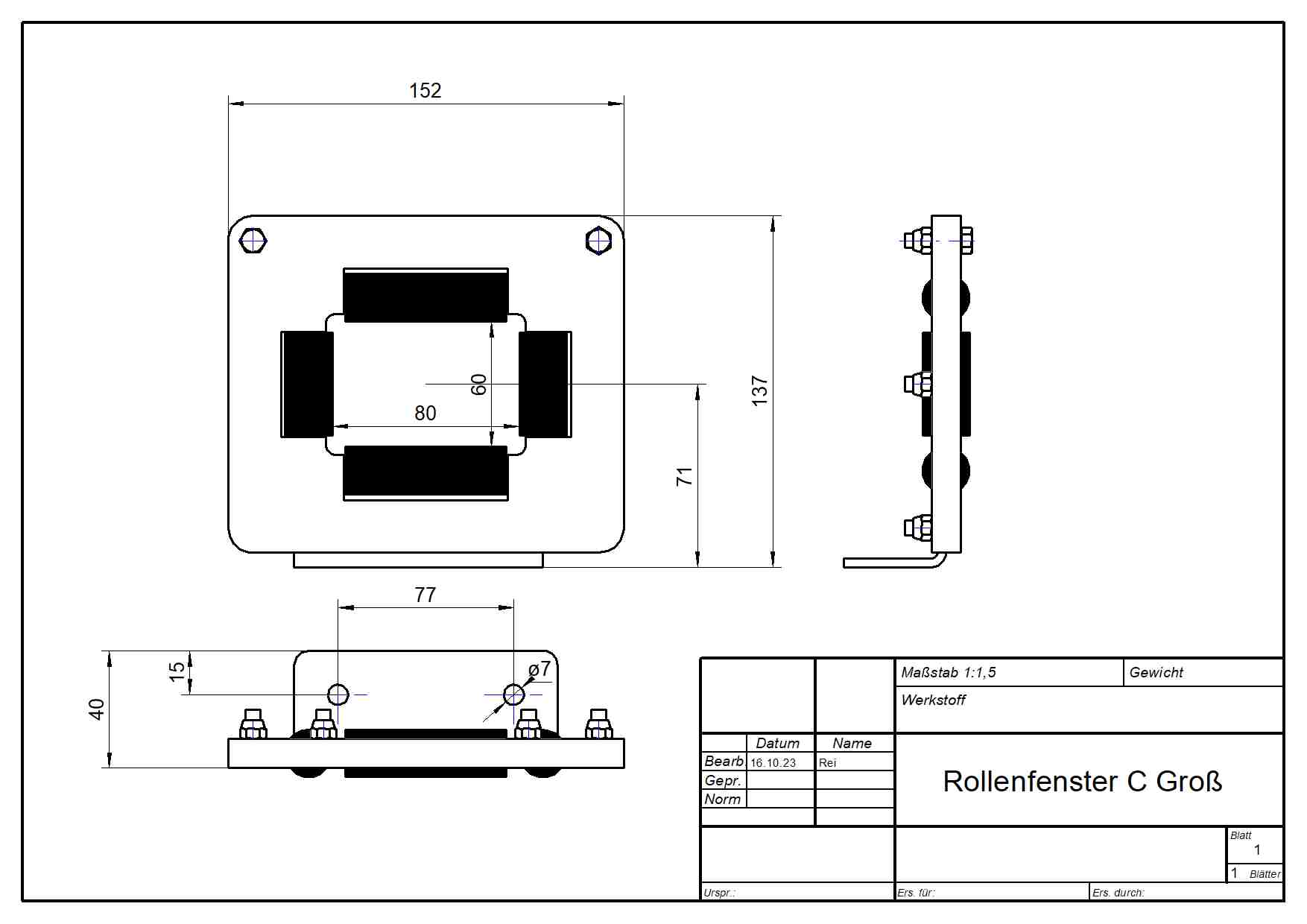

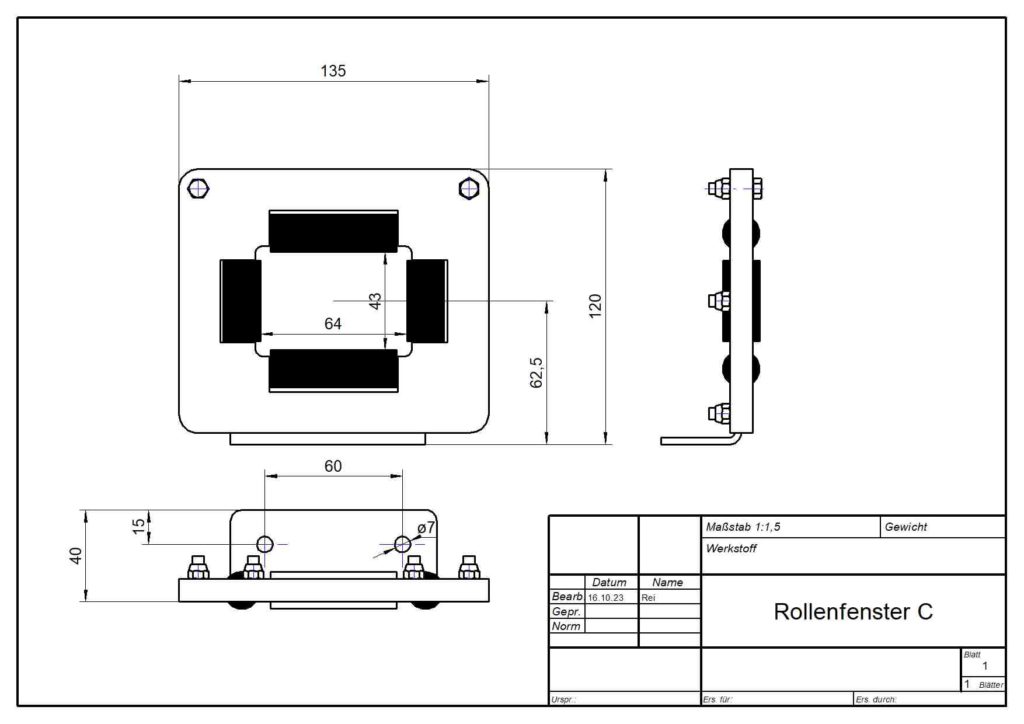

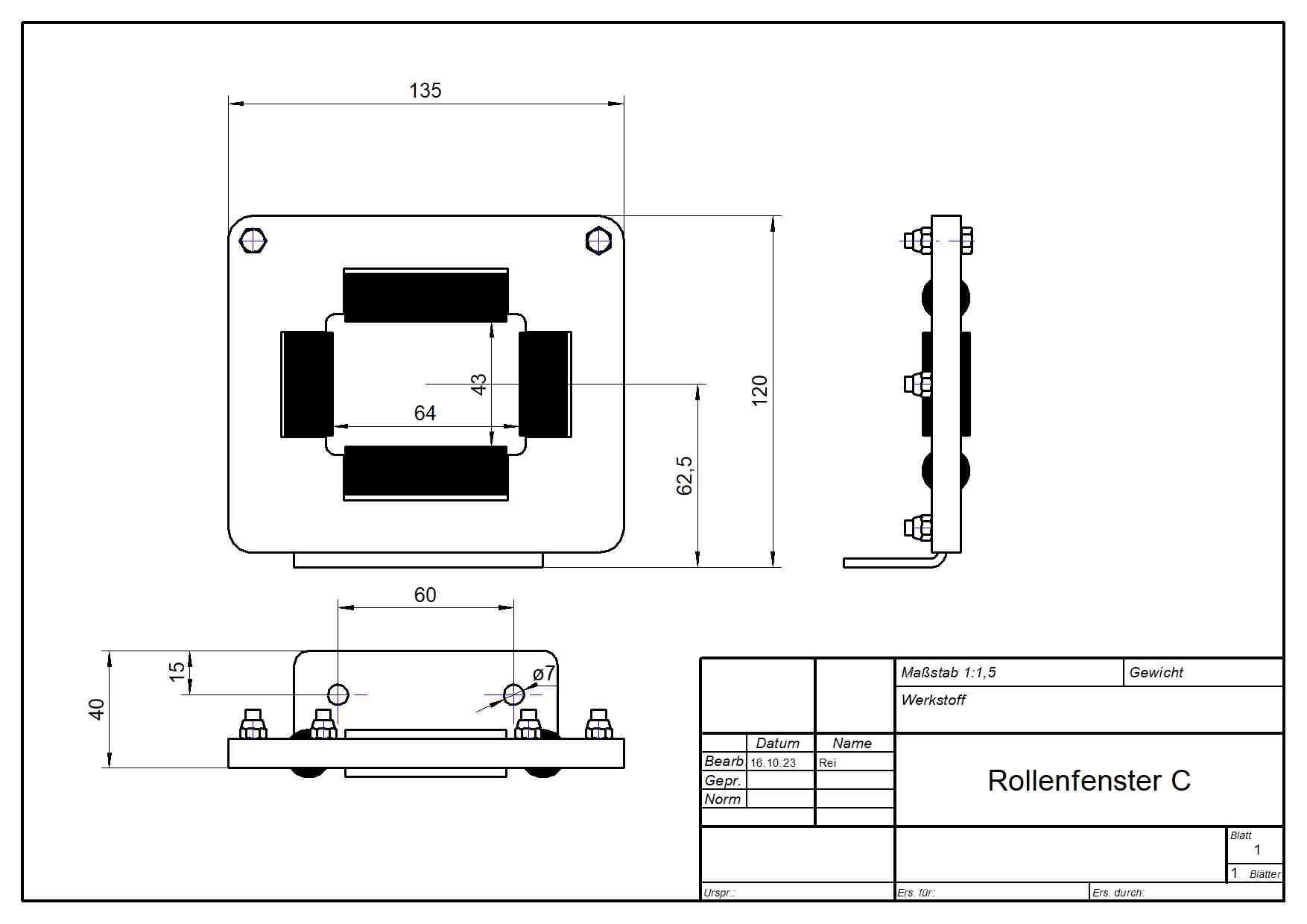

Model C:

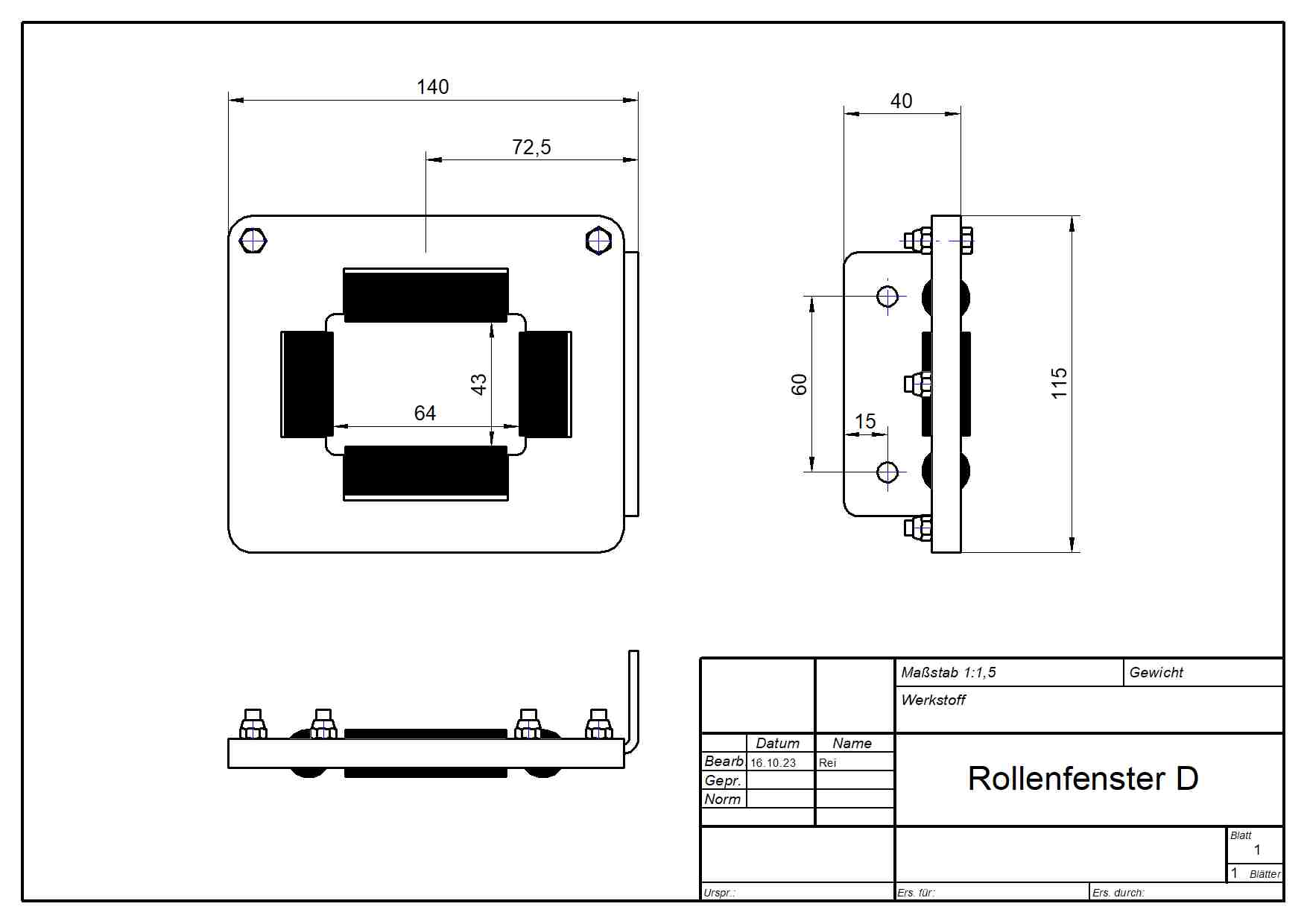

Model D:
